Straightness and Squareness

Measurement



Illustration of typical setup for straightness measurement



Vertical Straightness Measurement of a Machining Centre   Parallelism Measurement of a Lathe

Measurements can be taken to assess the motion of an axis perpendicular to its principle motion with the Straightness measurement equipment. Two versions of the optics can be used the Short Range set for measurement up to 3m (120") and the Long Range set for measurements up to 30m (100') with a reduced resolution. Linear parallelism can be assessed using the straightness measurement equipment, for example co-linear axes such as horizontal boring machines with a quill.

Angular Positioning Kit (55290A)

Straightness Measurement

 Equipment Required

 :

Basic Laser System (5529B)

Straightness Measurement Kit (55283A)

 Compatibility  :

Keysight 5530, Agilent 5530, Agilent 5529

Hewlett Packard 5529, Hewlett Packard 5528

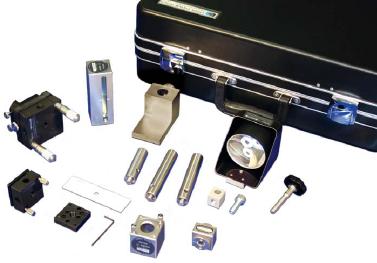

Straightness Measurement Kit Contents

 Description

Part Number

Quantity

 Tuning Mirror 10772A 1
 Straightness Accessory Kit 10776A
       Post (~ 50 mm) 1
       Post (~ 100 mm) 2
       Adapter Plate 10768-20215 1
       Adjustment Screw 1
       Straightness Base 1
       Reflector Mount Assembly 1
       Large Cube Corner Assembly 1
       Tuning Mirror Mount Assembly 1
       Hardware Kit (includes hex key) 1
 Straightness / Squareness Case 10787A 1
 Short Range Straightness Optics 10774A *

 Long Range Straightness Optics

10775A *

* Short Range Straightness Optics are supplied as standard Long Range Straightness Optics are an option.

Squareness Measurement



Illustration of typical setup for squareness measurement

Setup for XZ squareness measurement

The squareness of motion between two perpendicular axes can be measured using the straightness optics and an optical square.

Squareness Measurement

 Equipment Required

 :

Basic Laser System (5529B)

Straightness Measurement Kit (55283A)

Optical Square(10777A)

 Compatibility  :

Keysight 5530, Agilent 5530, Agilent 5529

Hewlett Packard 5529, Hewlett Packard 5528

Optical Square 10777A
